Show FlipperTown who's really in charge with this high-performance IR Blaster.
After receiving a ton of feedback from the original IR Blaster, I decided the MastaBlasta had to be made. Complete with multiple "quality of life" improvements, the MastaBlasta is a safe bet and won't disappoint.
WHAT IT IS / DOES:
- Expands the power of the flipper-zero's IR capabilities.

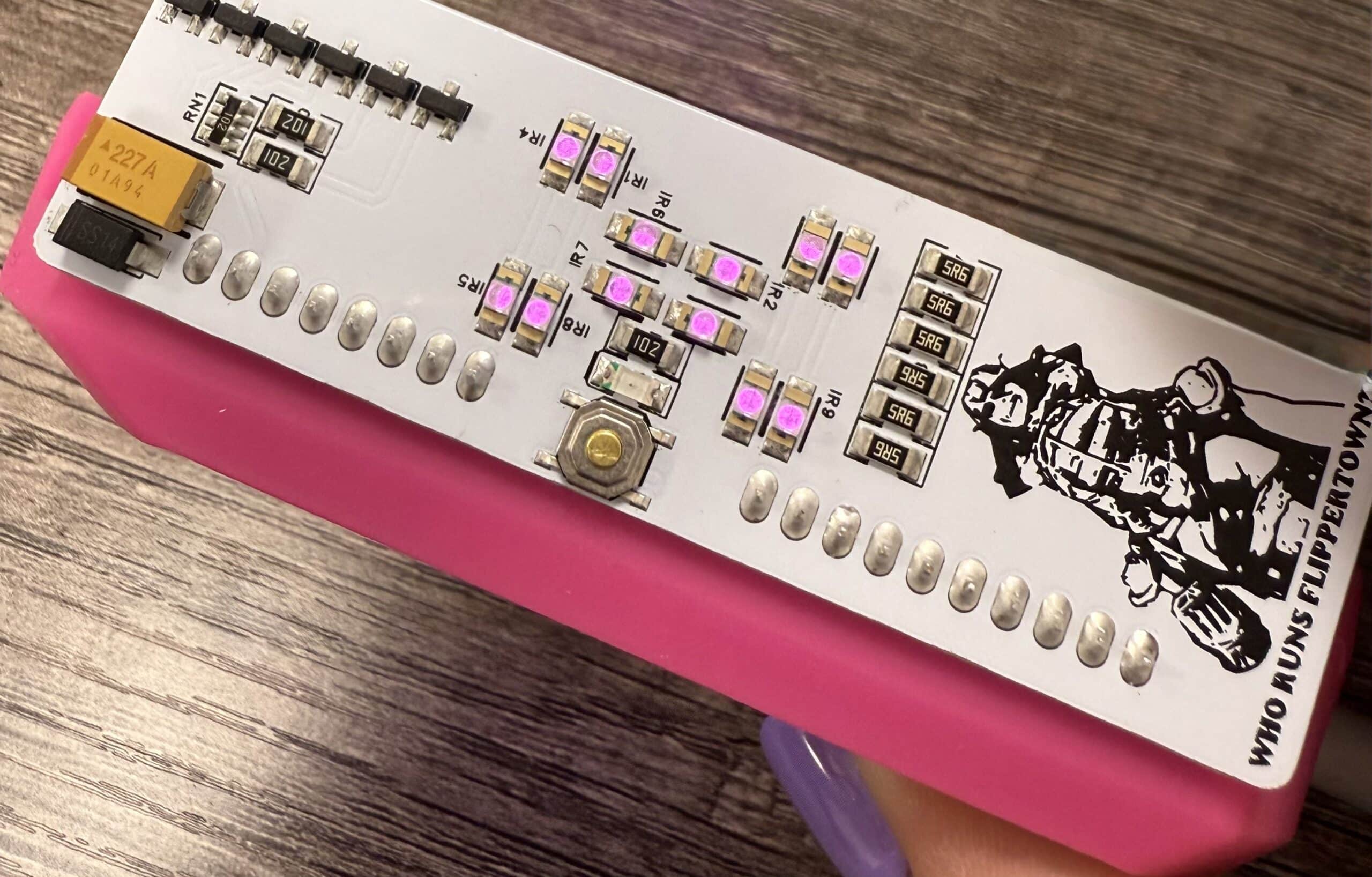

- 12 IR High-Intensity LEDs with specific focus to create a "beam" of high-intensity IR Light. This Blaster Had it's IR LED Placement designed specifically to allow for the addition of a Lens to further improve performance.
- Built-in Reverse polarity protection to prevent damage to the flipper if inserted backwards.

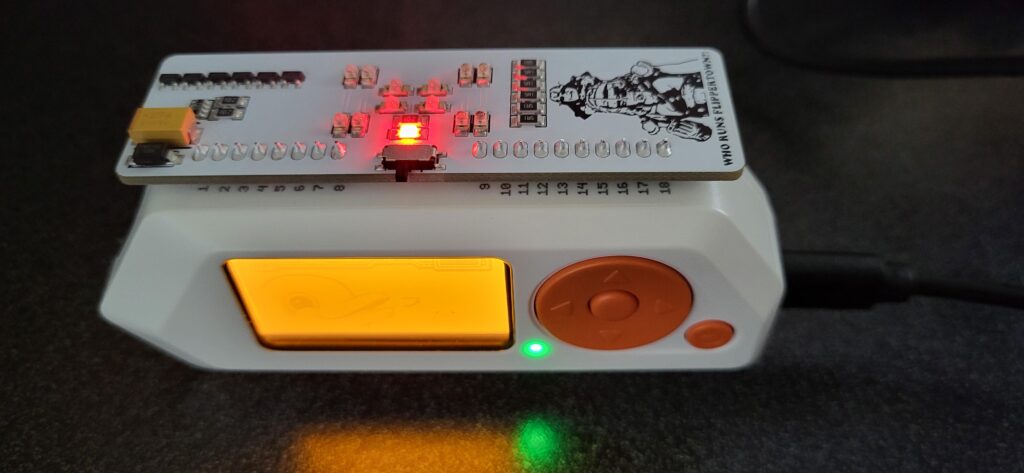

- Red Power LED is controllable via switch as per popular request!
- lets you control TVs, Projectors, A/V Equipment, wall AC units, fans, heaters, and much more using the flipper as an "universal remote"
- Is coated with a highly reflective white coating to act as a reflector (similar to a flashlight:)
- Is comprised of high temp PCB Substrate to help dissipate heat when using the blaster in strenuous circumstances.
- All Solder pads are ENIG (Gold) plated

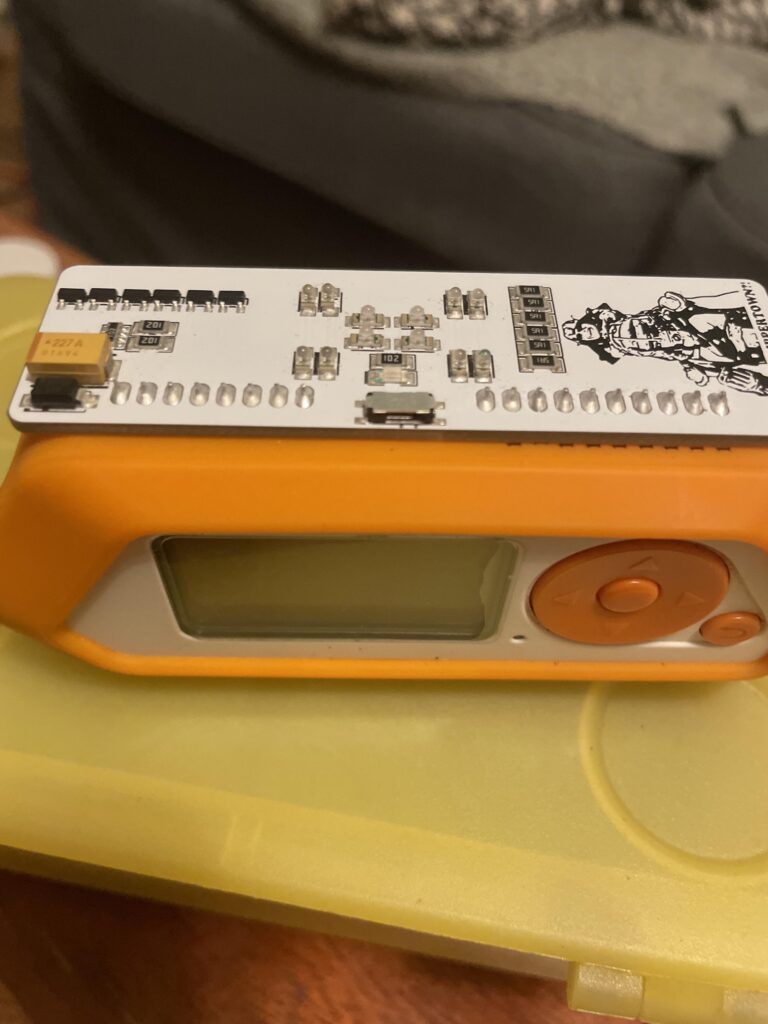

- It's FLAT and fits flush alongside the top of the board!!
- It has been designed to fit in a 3D Printed case
- It Lifts Embargos.
WHAT IT DOESN'T DO
- Make you breakfast
- Read you a bedtime story
- Fight to the death in Thunderdome
Why not use the built-in IR on the flipper?
Well, you still need the built in IR on the flipper to program the flipper with new IR Signals as this is ONLY a transmitter. This said, when running unofficial firmware, you can turn on the "Debug IR" feature which will allow you to use this module. This will allow you to transmit at a might higher power than the built-in IR, which means you can turn on / off devices without having to point the flipper at the device directly. Advice: Don't test device in the next room while your significant other is watching TV 😂🤣
Technical details:
The IR Blaster is comprised of 12 high powered IR LEDs. The LEDs at their theoretical maximum brightness ensuring the signal is broadcast as "loud" as possible into the room. As long as the IR Receiver can see even a reflection of the IR being emitted, it should respond to the code being sent by the blaster.
How to Use:
TL;DR – Point at TV, Say "Lift Embargo" and activate the Universal IR Remote Function
There has been a little confusion on how to use an external IR Blaster so I wanted to put together a quick guide to help you get started:
You must be using unofficial firmware as currently the official firmware does NOT support the forwarding of IR Signals to the external GPIO Pins. I suggest Unleashed, Xtreme, or RogueMaster firmware.
You must enable "Debug" mode: go to settings —> system —> debug —> ON
This is a 5v Module! You must turn on 5v to use it go to GPIO —> 5v –> ON
After you follow the above two steps, when you enter the "Infrared" menu option, you should see an option for "debug" and then an option to send to Pin A7(2). Make sure this is selected or it will not work.
FAQ –
Q: The red light doesn't turn on, what's going on?
A: Make sure the board is fully seated in the Flipper, if you have a silicone case, you may need to adjust it slightly as the module is designed to fit snugly into the case. Also – Make sure you turn 5v on as this is a 5v module! This can be done under the GPIO settings. NOTE: Removal and re-insertion of the module will turn off 5v. When plugged into USB (such as a power pack) 5v is always on, and this step can be skipped)
Q: I have tried to turn on/off a TV / at a bar, store, menu, school, etc and it's not working.
A: Do not mess with devices you do not own, or do not have permission to mess with. Period. This said, if you do have permission, make sure that the device itself is working properly with IR to begin with. many systems, use RF or bluetooth instead of IR to actually communicate (I'm looking at you Fire-stick/TV) Also, try capturing an IR signal with a known working remote using the on-board IR Receiver, and then transmitting the saved signal with the blaster.

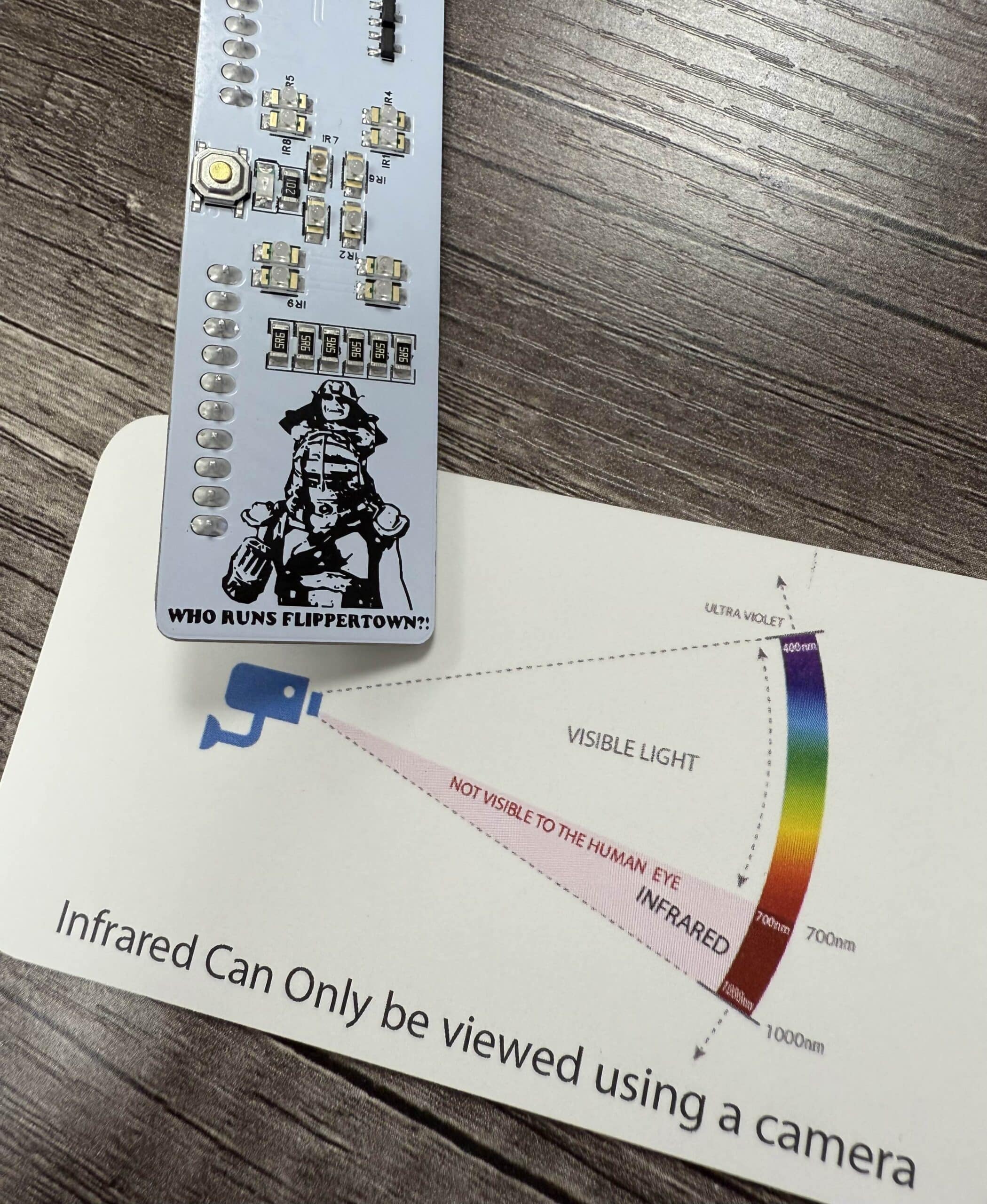

Q: The IR LEDs don't light up when I look at them with my naked eye
A: Infrared is not visible (or barely) to the naked eye. You need to "view" the IR using a camera (any cell phone camera will do). additionally, the LEDS used on the blaster, WILL illuminate SLIGHTLY red to the naked eye, if you are in a completely dark room, and I mean COMPLETELY dark.
Q: My Blaster gets a little warm after extended use, is this normal?
A: Yes, the blaster puts out a decent amount of power, and in turn creates a decent amount of heat, which is absorbed into the board. While the board might get a little warm, it should not get HOT. if your board gets HOT, discontinue use and reach out to me and I can arrange a replacement if it is deemed to be a manufacturing defect. Please note that every board is stress-tested before it is shipped and I cannot replace boards due to user misuse/abuse such as running higher voltages, illuminating the IR steady-on as if it were a flashlight, or modifying the board in anyway.
Q: RESTOCK WEN?!
A: SOON 😉 – No seriously, I can only build so many of these at a time as it is a very time consuming process. Each unit is hand-made, and fully tested before being shipped, so please be patient 🙂 I plan on restocking at least once per week, if not more often. Sign up for the Wait-List to be notified on restocks.

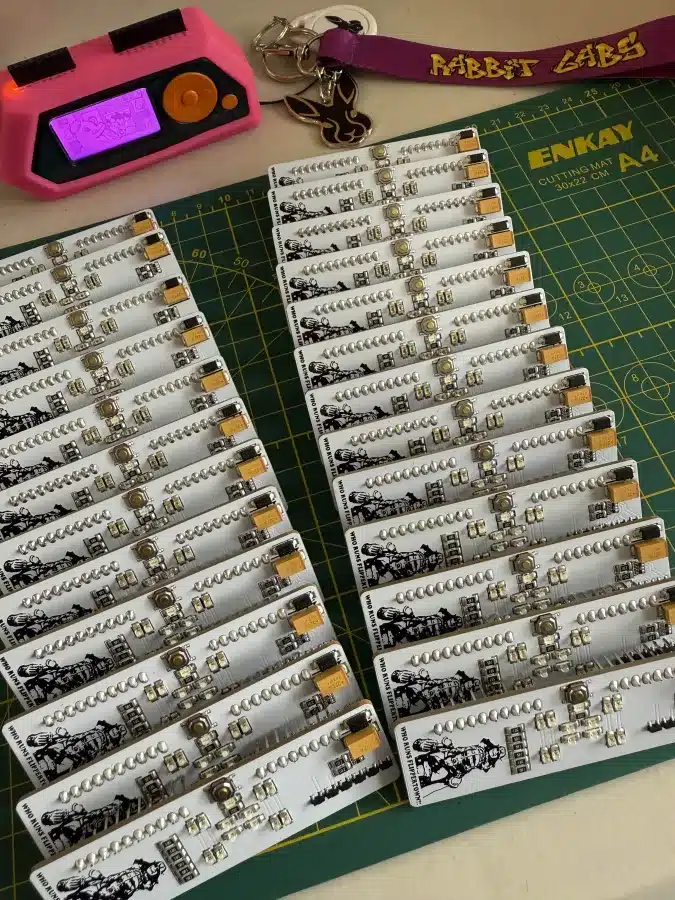

Q: Handmade? you mean you don't get these manufactured?
A: Yes, each and every Board is hand-made, all SMT is soldered by me, and all through-hole soldering is also soldered by me. As such, it takes time to build each and every board. Sure, it prevents me from stocking more, but it also ensures I can have a tight control on quality, and well, I enjoy it 🙂
Q: My order says it has been shipped, but the tracking says the USPS / UPS / DHL / etc. is awaiting the item and it's been a day or two, what's going on?
A: I work a full time job, I build these boards (and ship them) in the evenings, when the post office is closed. I try my best to get everything dropped off the following day, but sometimes circumstances (Looking at you NJ Traffic) gets in the way of me making it to the post office in a timely fashion. Just please know I make every effort to get packages dropped off to the post office at the earliest.
DISCLAIMER:
The use of the 'IR Blaster' is intended solely for educational, research, and personal purposes. We are not responsible for any unauthorized or illegal use of our product. We strongly emphasize that this product should be used in accordance with applicable laws and regulations, and strictly for educational purposes. Any misuse of the 'IR Blaster' is at the user's own risk, and we assume no liability for any actions taken by the user in connection with the use of our product.
